BPS 2421P

SKU: BPS 24210108300

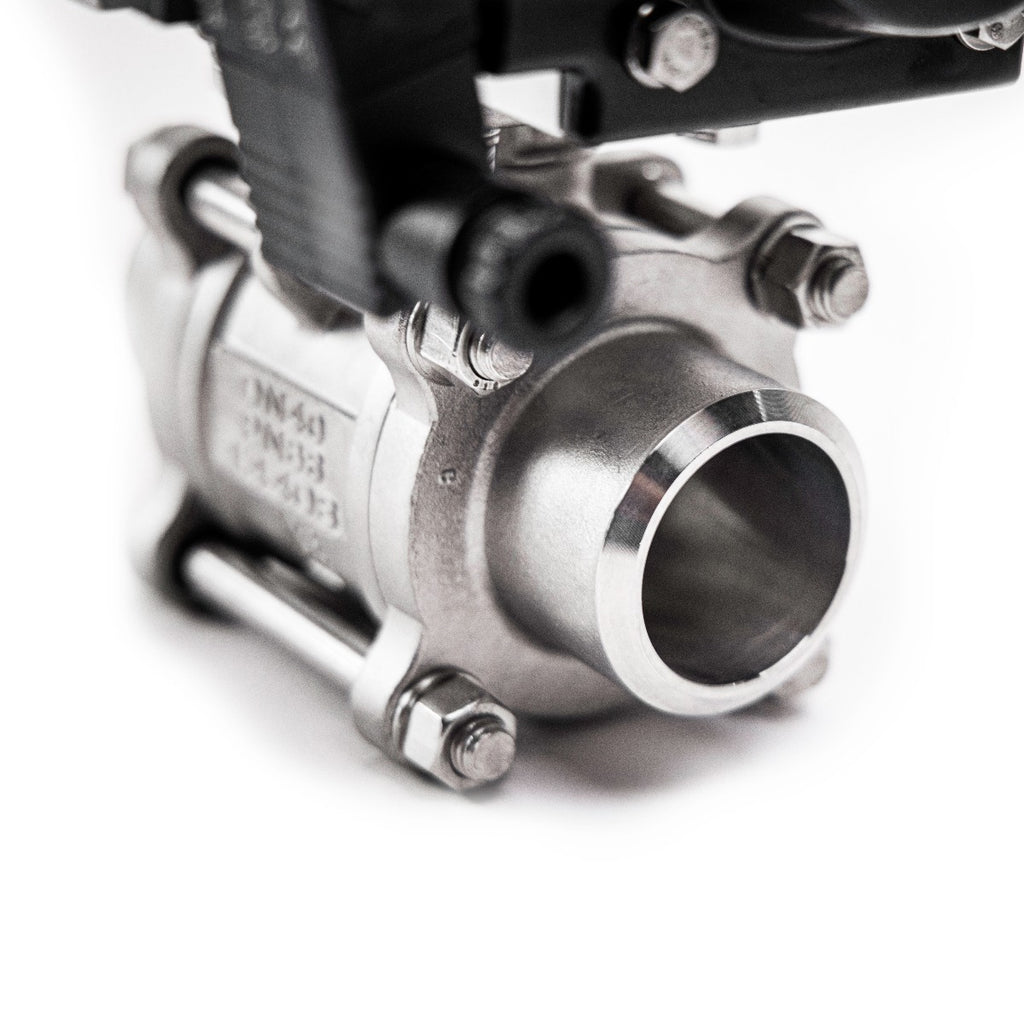

Ball valve stainless steel, welded

DN DA Dubbelverkande SR Enkelverkande : 10 DA
PN: 63
Sale price0 kr

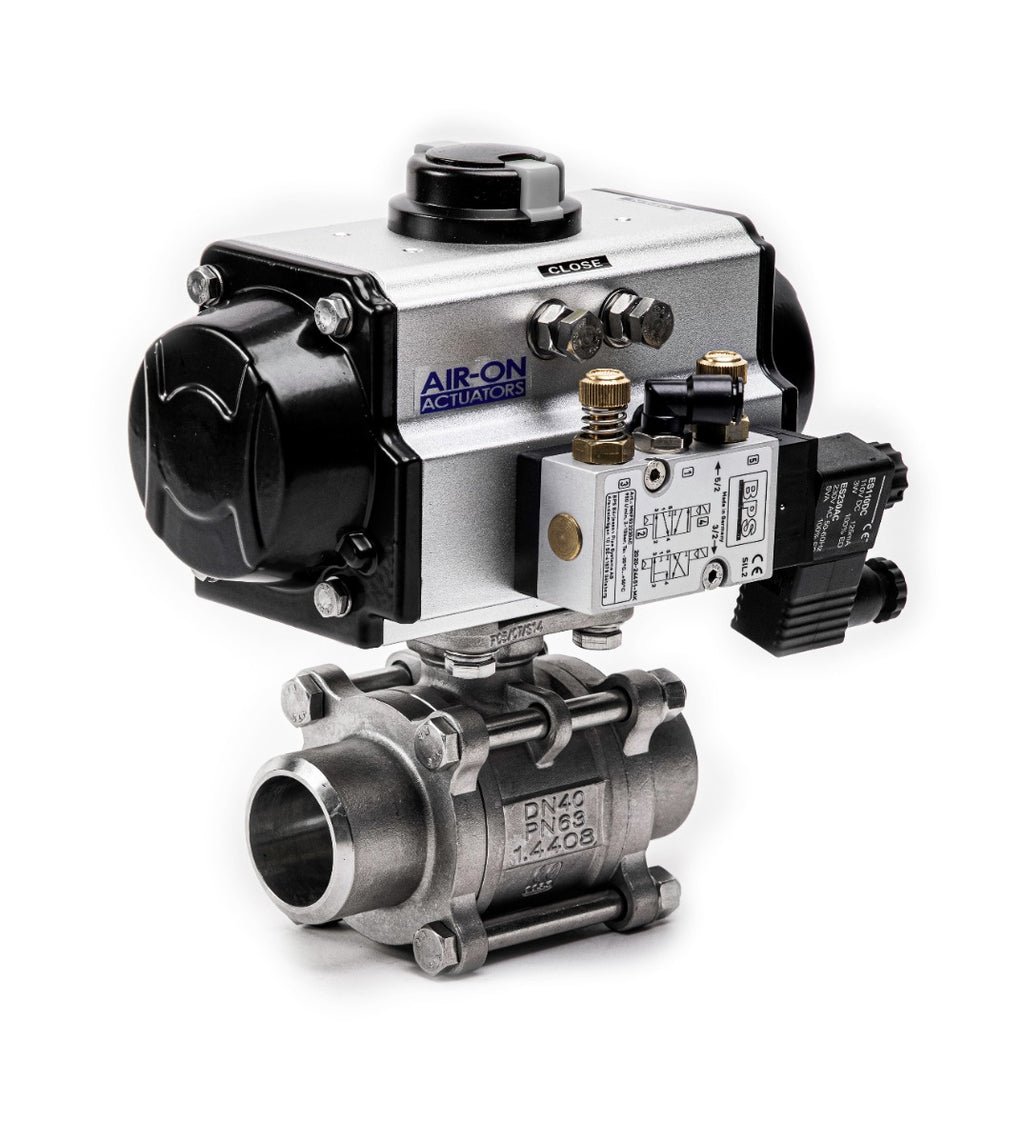

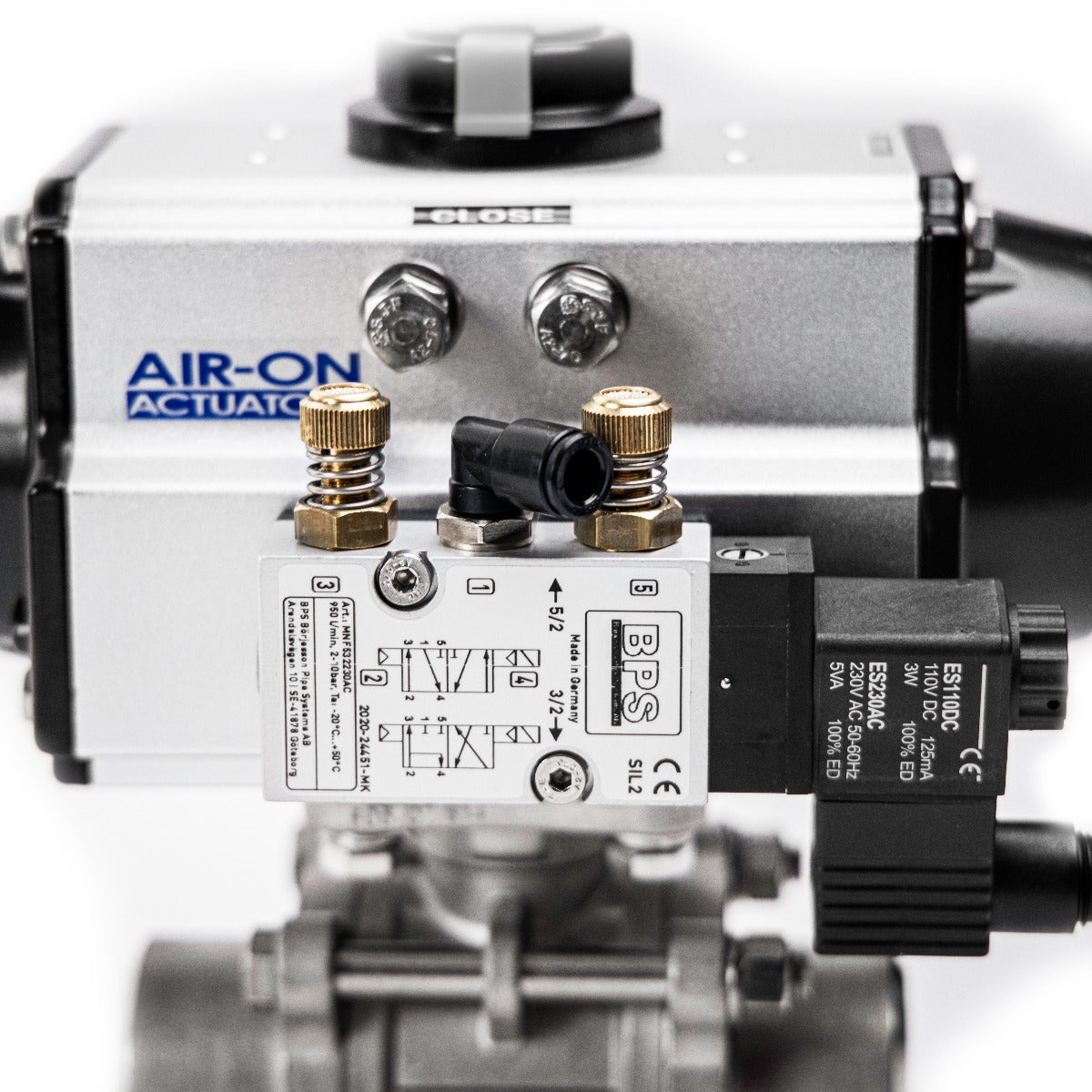

The ball valve is of 3-pc design with a welded connection that conforms to DIN 3239 part 1. Suitable for liquids, steam and gases. The valve is equipped with a self-compensating packing box for optimal tightness to the atmosphere. It is renovable, ball and gaskets can be changed when the valve is installed. The valve has an ISO 5211 flange for direct mounting of actuators. Full bore flow. Pneumatic actuator in double-acting or single-acting execution.


Body: Stainless steel, ASTM A 351 - CF8M
Ball: Stainless steel, ASTM A 351 - CF8M
Seat: PTFE
Connection:  Welded
Temp: -20°C - +200°C
