BPS 2303P
BPS 2303P
Roll over image to zoom in Click on image to zoom
BPS 2303PBPS 2303P

BPS 2303P

SKU: 2303P-BPS 23030408300

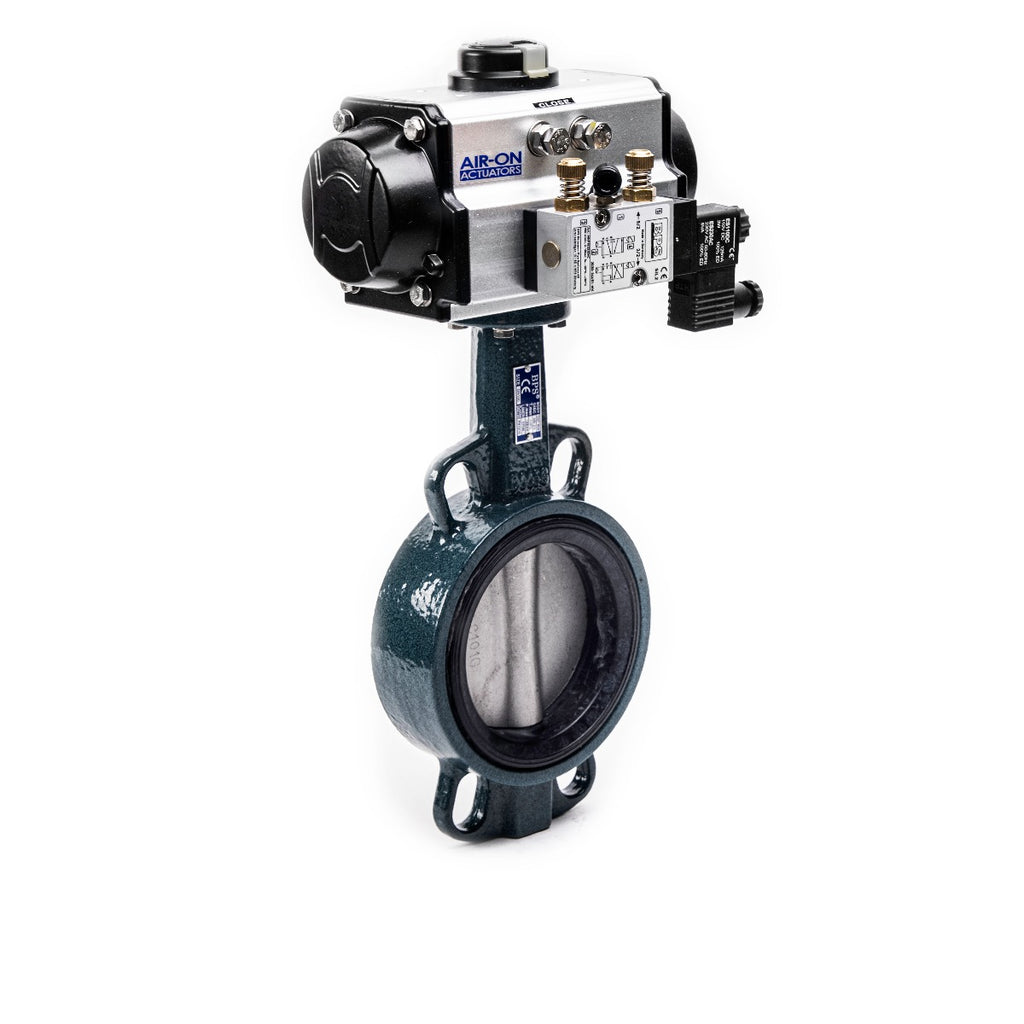

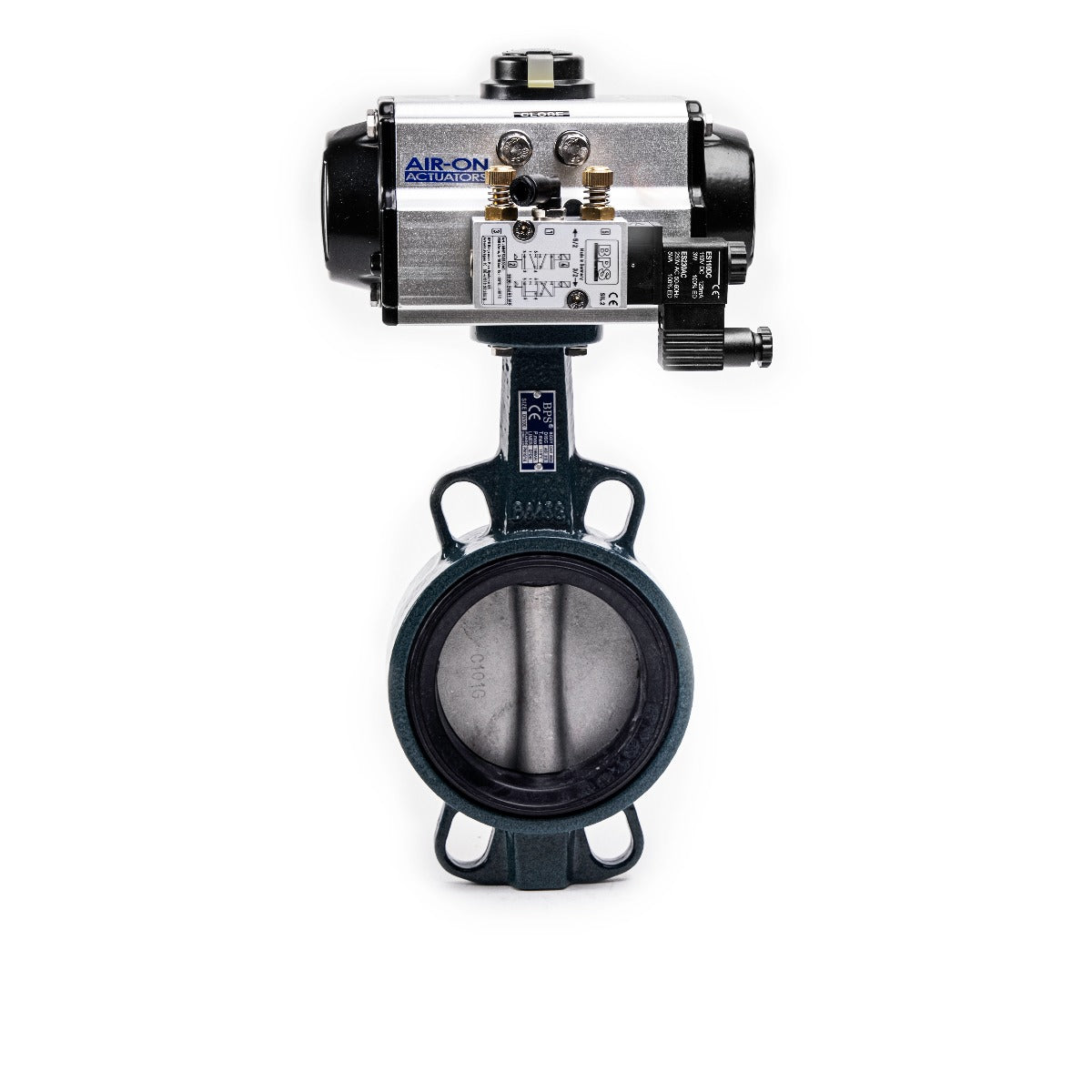

Butterfly valve cast iron

DN DA Dubbelverkande SR Enkelverkande: 40 DA
BYGGLÄNGD : 33
PN: 16
Price:
0 kr

This butterfly valve has a wafer type connection and is mounted between two flanges. Standard lining is EPDM rubber and the valve has an ISO 5211 flange for direct mounting of actuators. It has a stem bushing of PTFE between the body and shaft to ensure that the valve is easily operated over time. Face to face according to DIN EN 558-1 series 20 (K1). The pneumatic actuator is available in double acting and single acting versions.

Description

Body: Cast iron GG25
Disc: Stainless steel AISI316
Lining: EPDM
Connection: Wafer
Temp: -15°C - +110 °C

Data sheet

  • - Datablad SV-EN BPS2303 (PDF)
  • 3D BPS2303P 8300DA (STP)
  • 3D BPS2303P 8300SR (STP)
