BPS 8920

SKU: BPS 8920015 0,4-12 bar

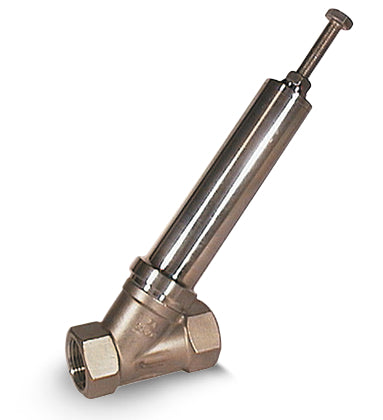

Pressure sustaining valve stainless steel, threaded

DN: 15
Sale price0 kr

Pressure sustaining valve in stainless steel suitable for liquids, gases and steam depending on sealing material. Normally closed by spring force against flow direction. Opens automatically, when the pressure exceed the adjusted blow-off pressure. The blow-off pressure can be adjusted by the set-screw inside of the pressure range. Threaded connection conform with DIN ISO 228 T1. Available with sealed spring chamber for media containing particles.


Body: Stainless steel 1.4408
Spring: Stainless steel 1.4404
Seal: FKM
Connection: Female threaded
Temp: -15°C – +150°C
