BPS 7919

SKU: BPS 7919050

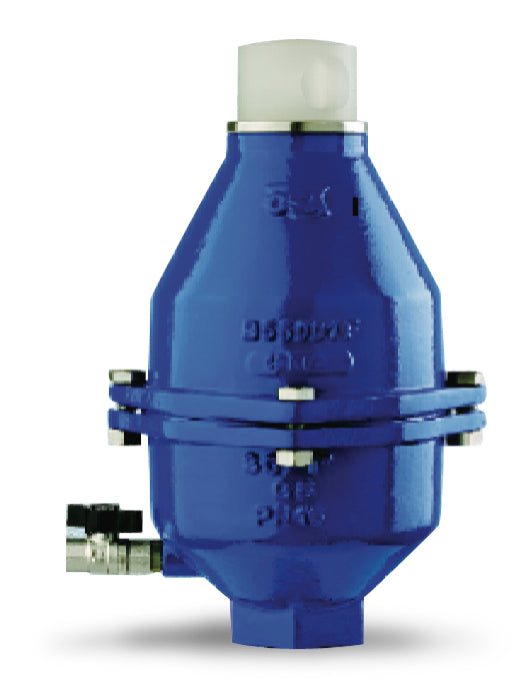

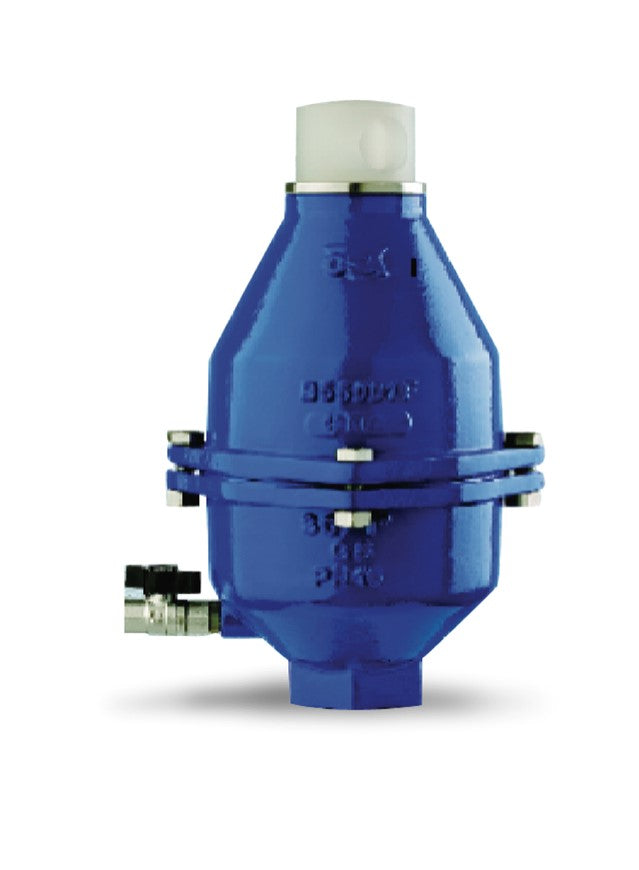

2-way function air venting valve ductile iron

DN : 50
BYGGLÄNGD : 380
PN: 16
Price:
Sale price0 kr

A 2-way air venting valve in ductile iron with 3 functions. The valve is suitable for sewage water. It will automatically adjust the outflow capacity and reduce the risk of water hammer. This valve has the same function as the venting valve article no BPS 7918, but is more compact and with a little less capacity. When filling the pipe, the valve is fully open until the pressure increases and the upper part of the float lifts and dampens the outflow of air. This reduction of outflow of air reduces the risk of water hammer. When the water level rises in the valve, the float in stainless steel, floats up and closes the outflow of air further. Between the two parts of the float, in the upper part of the valve, is a possibility for the air to flow through all the time to regulate the pressure. When emptying the pipe, the float sink and you get a fast filling of air in the pipe to avoid vacuum. It also has a drain valve to control the function of the valve and to evacuate media.

Description

Body: Ductile irone
Float: Stainless steel AISI316
O-ring: NBR
Connection: Female threaded
Temp: 60°C
