BPS 2461PE
Roll over image to zoom in Click on image to zoom
BPS 2461PE

BPS 2461PE

SKU: 2461PE

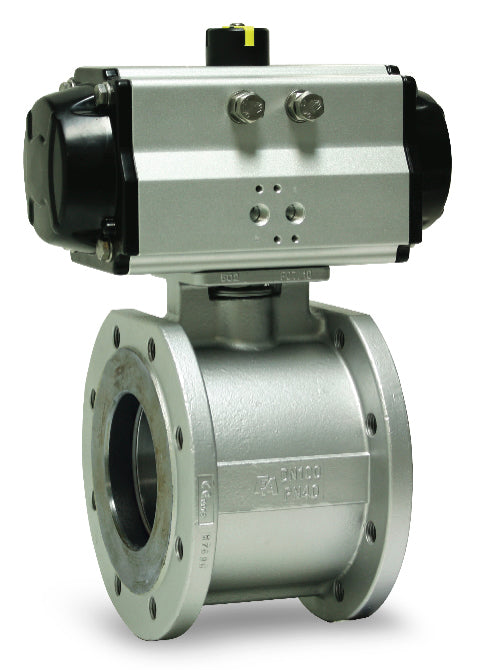

Compact ball valve in acid-resistant steel. Pneumatic actuator. PN 40/10

Price:
0 kr

Ball valve in compact design (short overall length) and is made entirely of acid-resistant steel. Suitable for liquid media and neutral gases. The valve has an ISO 5211 flange for direct mounting of actuators. It is equipped with a self-compensating stuffing box for optimal tightness against the atmosphere and has full bore.

Description

Compact ball valve in stainless steel. Pneumatic single acting actuator. Ball in AISI316. PN 40/10
Info: Ball valve with pneumatic single acting actuator. Flanged connection (threaded holes).
Temperature: -30°C - +180°C
Body: Stainless steel, AISI 316
Ball: Stainless steel, AISI 316
Seat: PTFE, Fiberglass reinforced
Actuator: Single acting actuator (Spring return) with Namur connection. Adjustable end position.
