BPS 2451ER

SKU: BPS 2451025ER

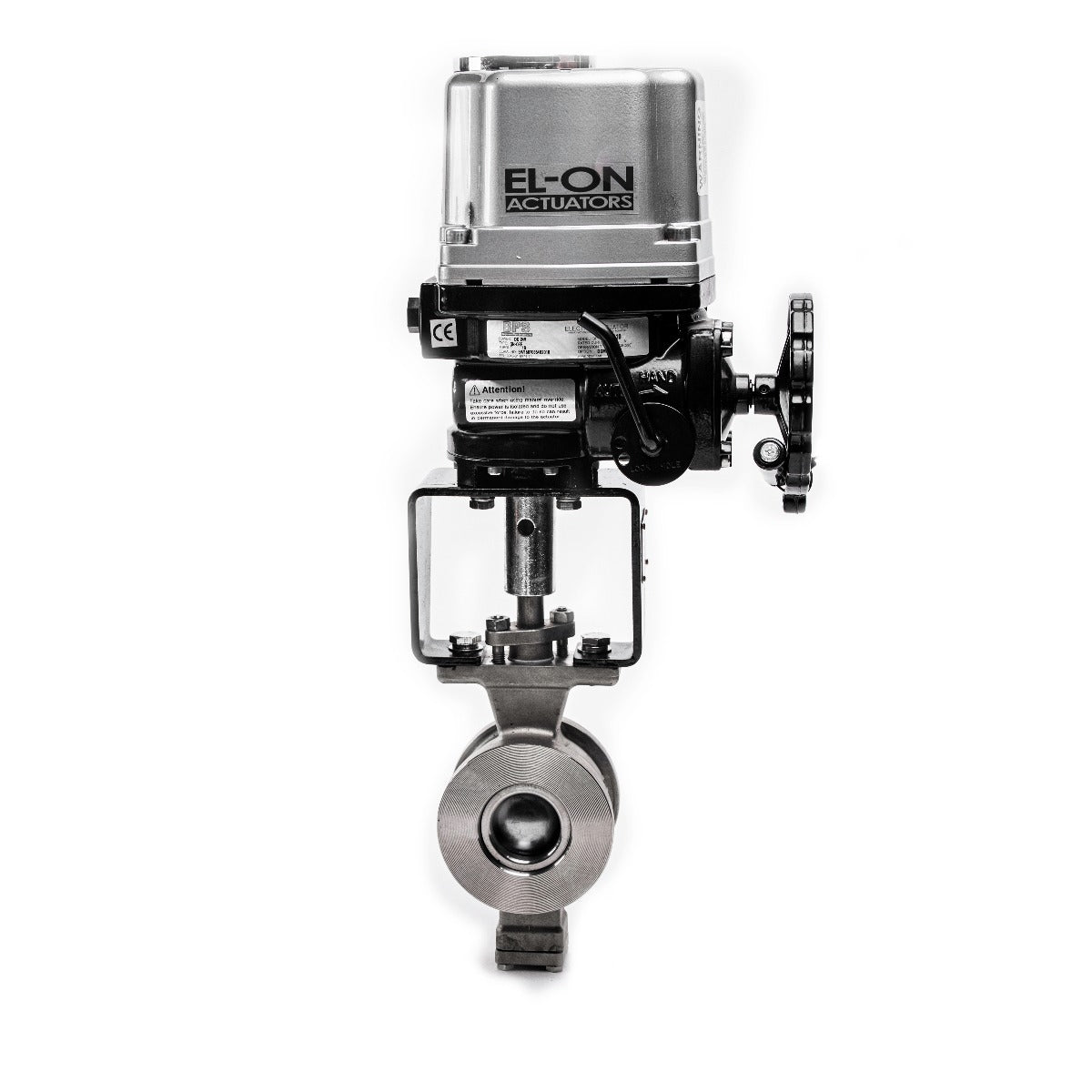

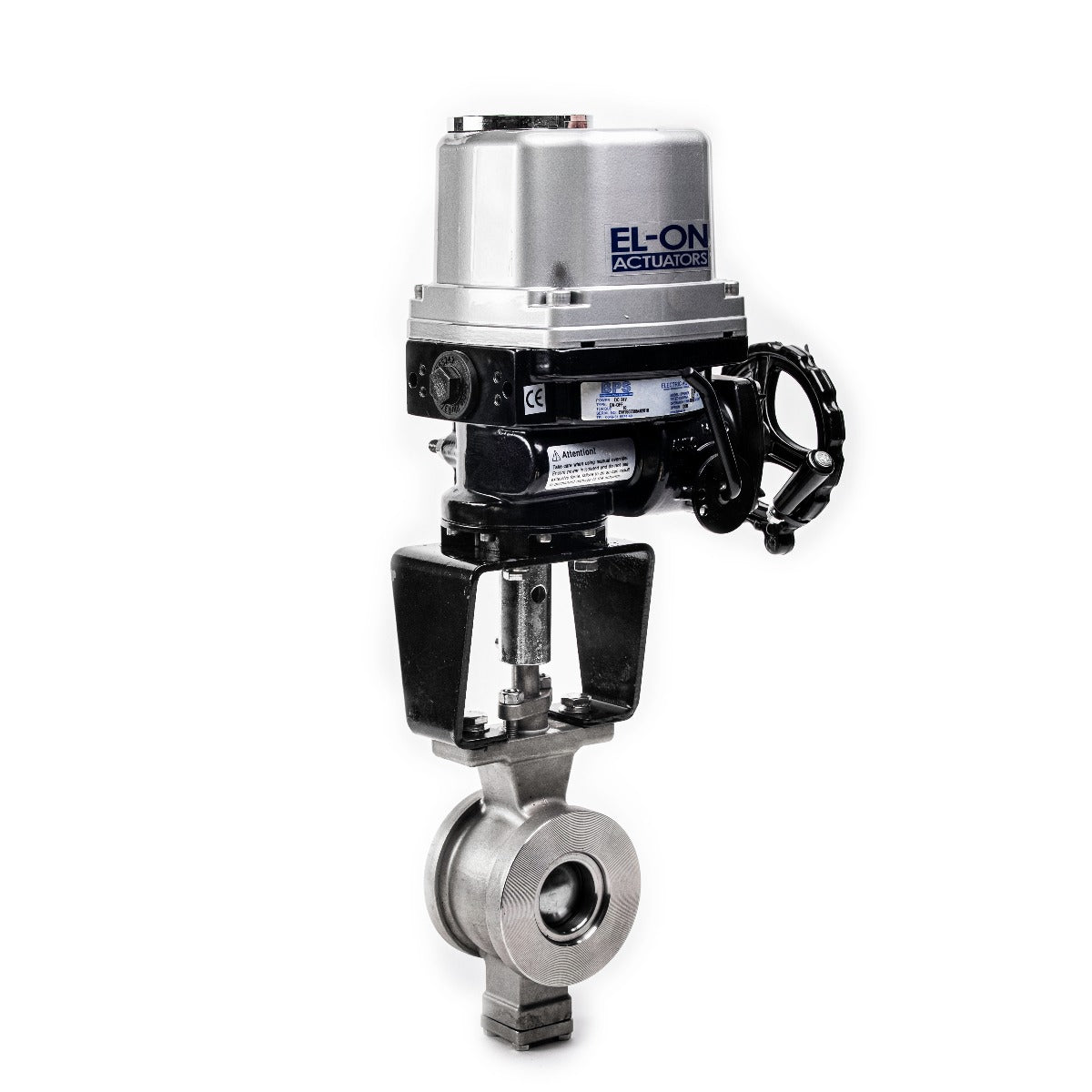

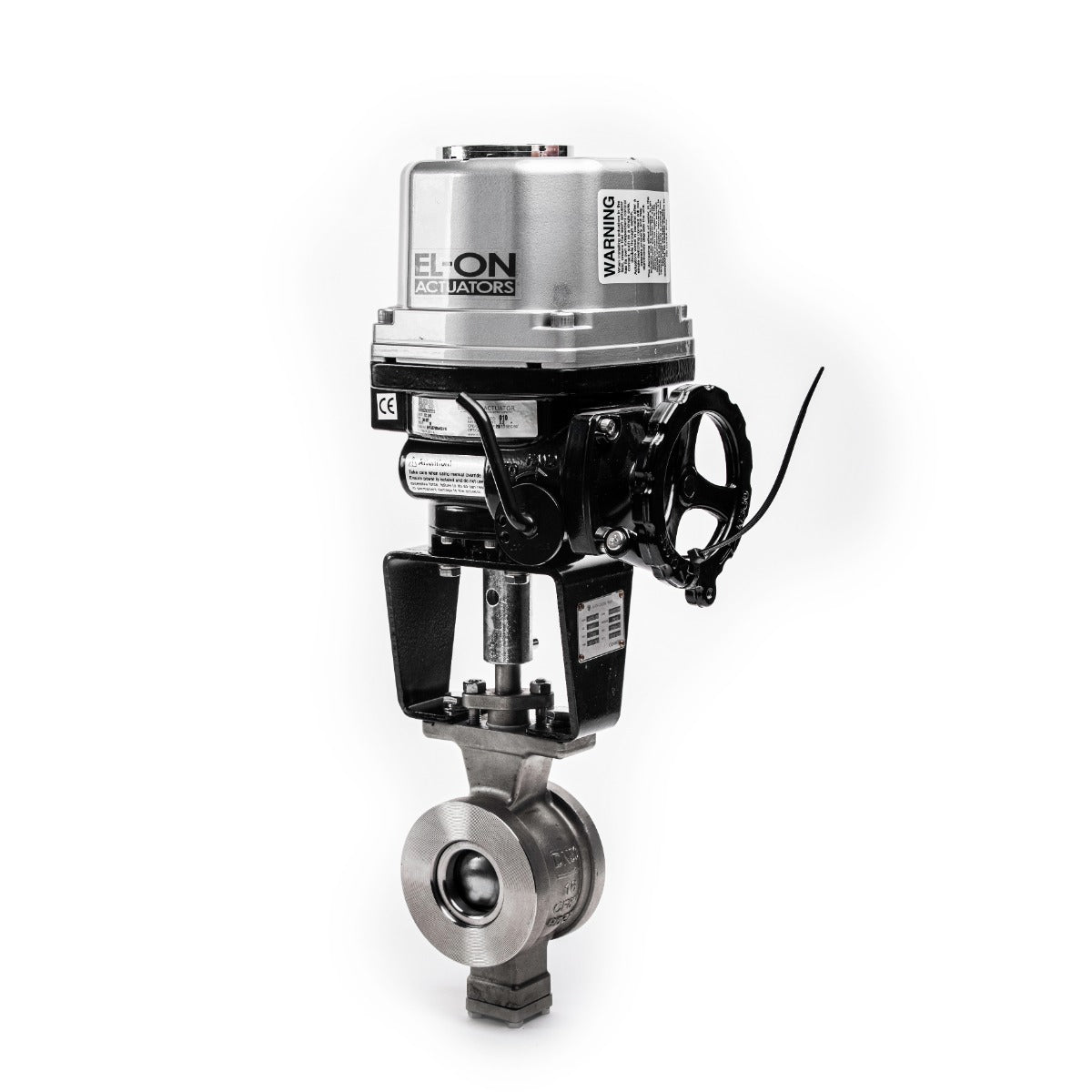

Segment ball valve stainless steel Electric regulating actuator

DN : 25
BYGGLÄNGD : 50
PN: 16
Price:
Sale price0 kr

The V-port segment ball valve has full bore and is an excellent flow control valve. It is also suitable as a shut-off valve. The valve is made of stainless steel and has a wafer connection for connection between flanges. It is available with a TFM soft seal or metal seal depending on application and size. The valve has an ISO 5211 flange for direct mounting of actuators. Face to face according to producer standard. The valve has very good control characteristics and can regulate over a large area. The valve is controlled by an electric actuator, 230VAC with 4-20 mA or 0-10 VDC.

Description

Body: Stainless steel CF8M
Plug: Stainless steel CF8M
Seal: Stainless steel AISI304+TFM
Connection: Wafer
Temp: -29°C - +220°C
