BPS 2442E

SKU: BPS 2442015E

Ball valve stainless steel

DN: 15
STRUCTURE LENGTH: 160
PN | VOLTAGE: 16 | 230VAC
Price:
0 kr

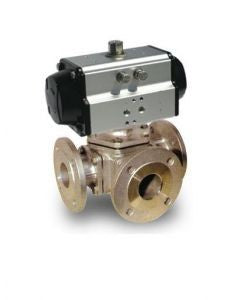

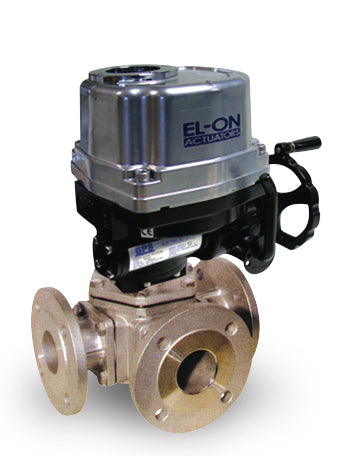

3-way ball valve with body in stainless steel, flanged connection. It has a full bore flow and the ball is available in L-bore or T-bore configuration. The valve has an ISO 5211 flange for direct mounting of actuators. It can be used as a mixing or distribution valve. Electric actuator with 230VAC, 24VAC or 24VDC.

Description

Body: Stainless steel 1.4408
Ball: Stainless steel 1.4401
Seat: PTFE
Connection: Flanged
Temp: -20°C - +150°C

Data sheet

  • - Data sheet SV-EN BPS2442 (PDF)
