BPS 2326P
BPS 2326P
Roll over image to zoom in Click on image to zoom
BPS 2326PBPS 2326P

BPS 2326P

SKU: BPS 23260508300

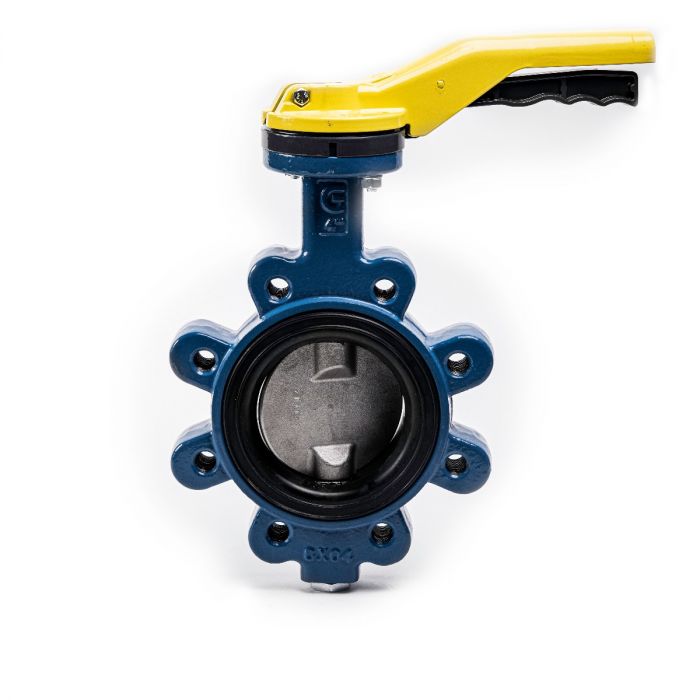

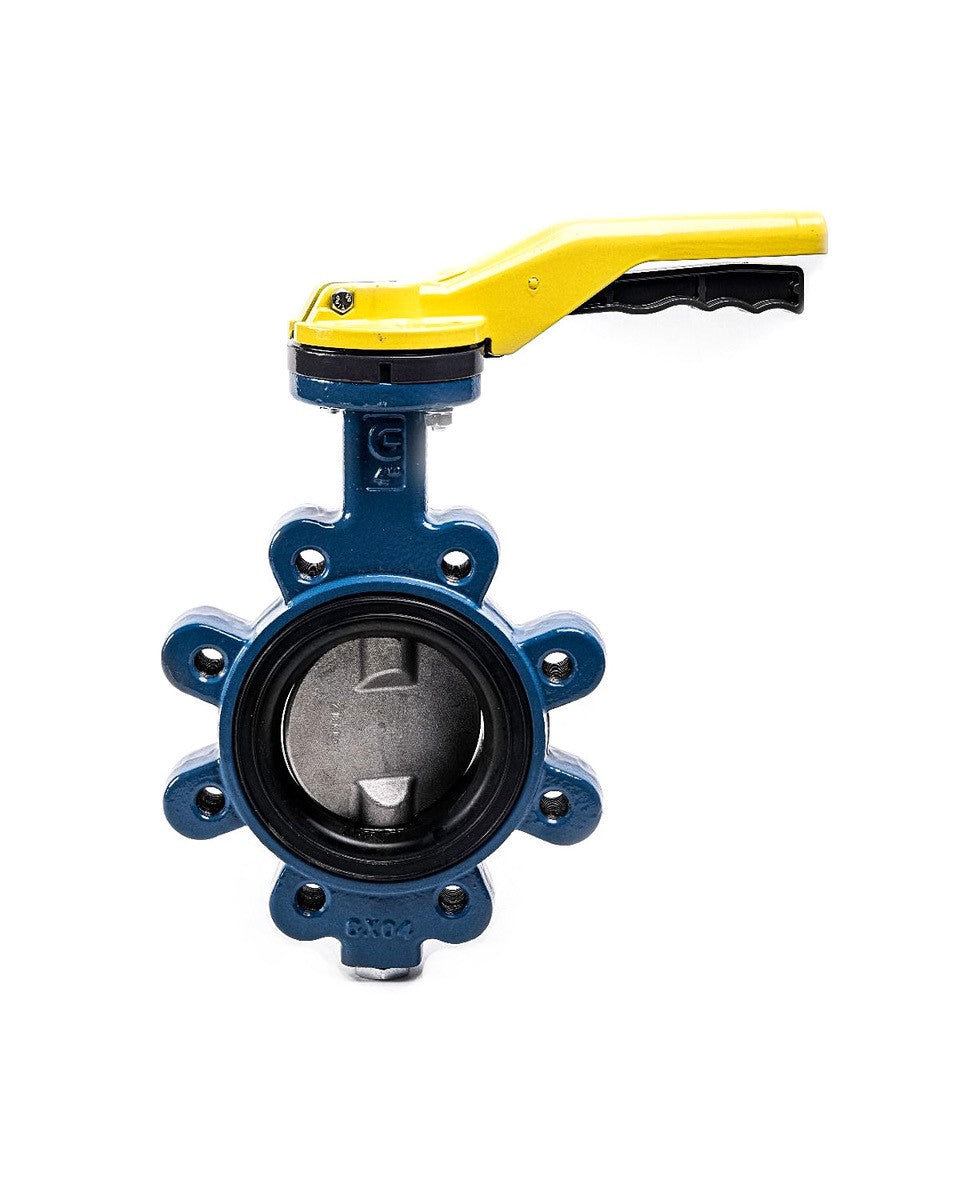

Butterfly valve ductile iron

DN DA Dubbelverkande SR Enkelverkande: 50 DA
BYGGLÄNGD : 43
PN: 16
Price:
0 kr

This butterfly valve has a lug type connection and can be used as an end of the line valve. NBR lining with DVGW certificate for gas. It has an ISO 5211 flange for direct mounting of actuators. Between the body and the stem is a stem bushing of bronze to ensure that the valve is easily operated over time. Face to face according to DIN EN 558-1 series 20 (K1). The pneumatic actuator is available in double acting and single acting versions.

Description

Body: Ductile iron GGG40
Disc: Stainless steel AISI316
Lining: NBR (DVGW approval for gas)
Connection: Lugged
Temp: -30°C - +100°C
