BPS 2313PR
BPS 2313PR
Roll over image to zoom in Click on image to zoom
BPS 2313PRBPS 2313PR

BPS 2313PR

SKU: BPS 2313040PR

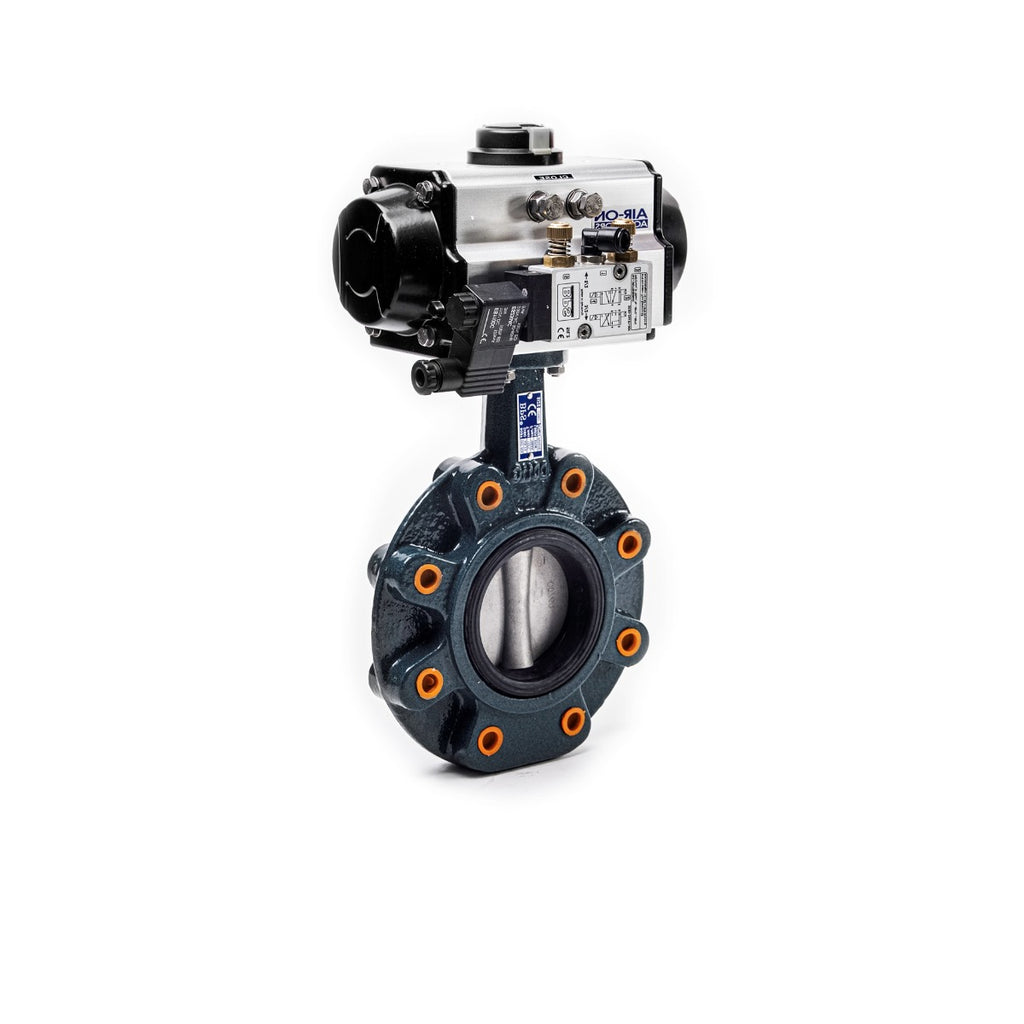

Pneumatic controlled butterfly valve cast iron

DN: 40
BYGGLÄNGD : 33
PN: 16
Price:
0 kr

This butterfly valve has a lug type connection and can be used as an end of the line valve. Standard lining is EPDM rubber and the valve has an ISO 5211 flange for direct mounting of actuators. It has a stem bushing of PTFE between the body and shaft to ensure that the valve is easily operated over time. Face to face according to DIN EN 558-1 series 20 (K1). The valve is controlled by a pneumatic actuator with positioner 4-20 mA.

Description

Body: Cast iron GG 25
Disc: Stainless steel AISI 416
Lining: EPDM
Connection: Lugged
Temp: -15°C - +110°C

Data sheet

  • - Datablad SV-EN BPS2313 (PDF)
  • Datablad SV-EN BPS EPD (PDF)
