BPS 2313ER

SKU: BPS 2313040ER

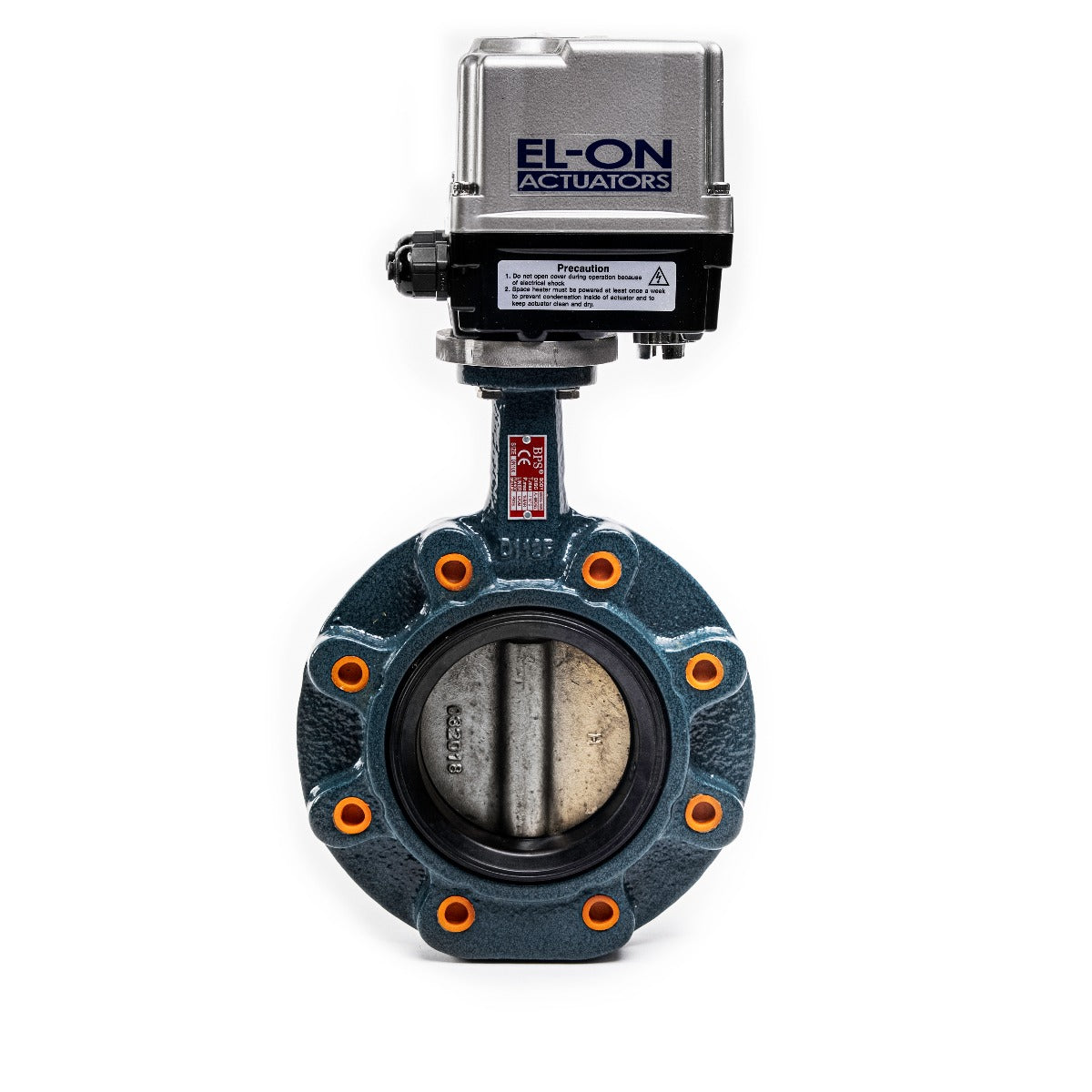

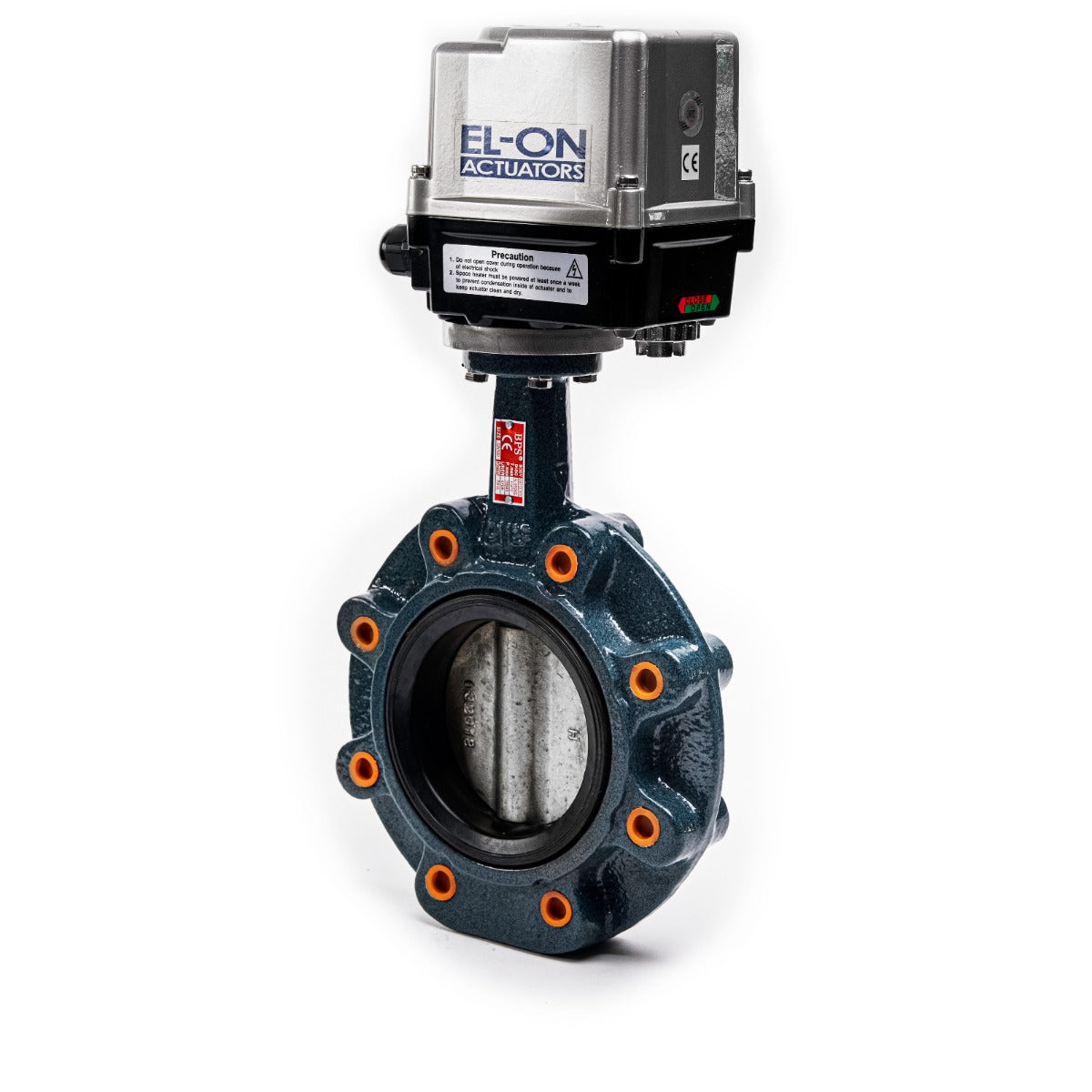

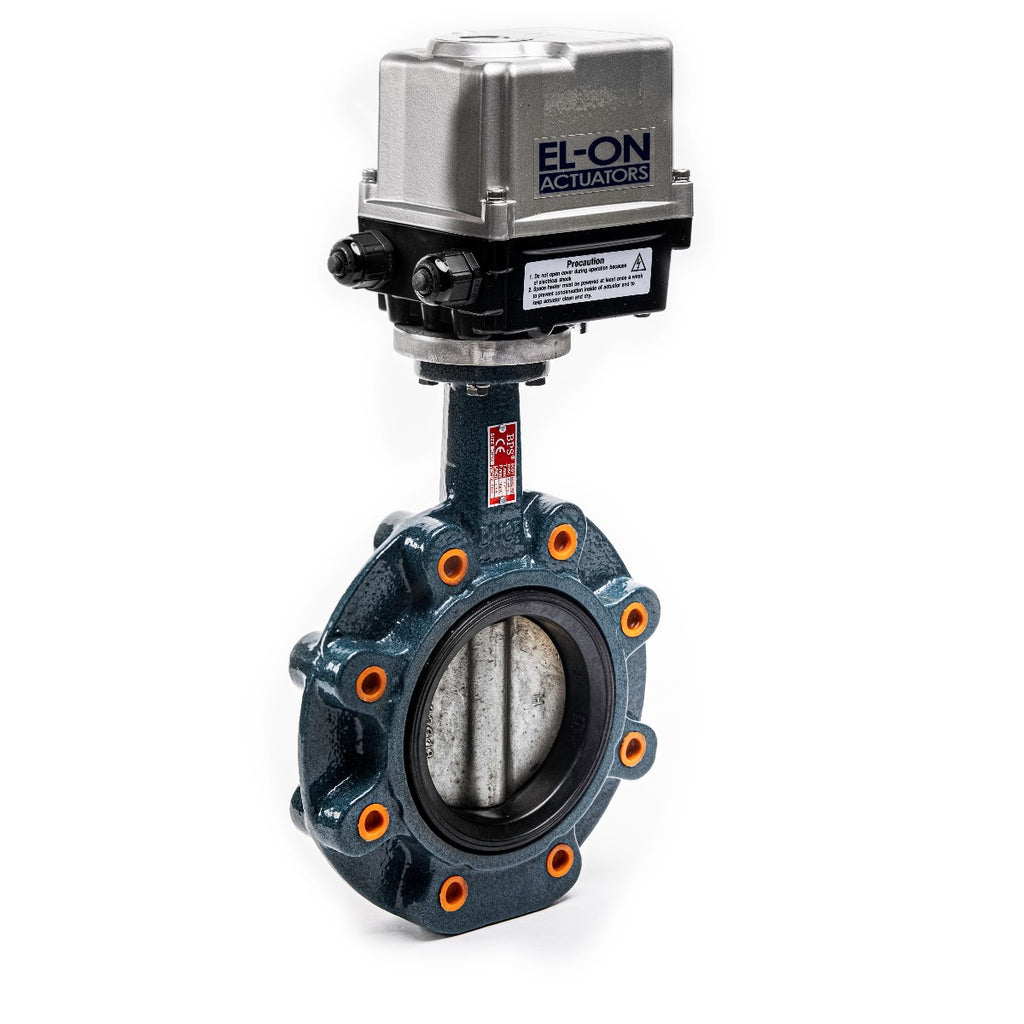

Electric controlled cast iron butterfly valve

DN : 40
BYGGLÄNGD : 33
PN: 16
Price:
Sale price0 kr

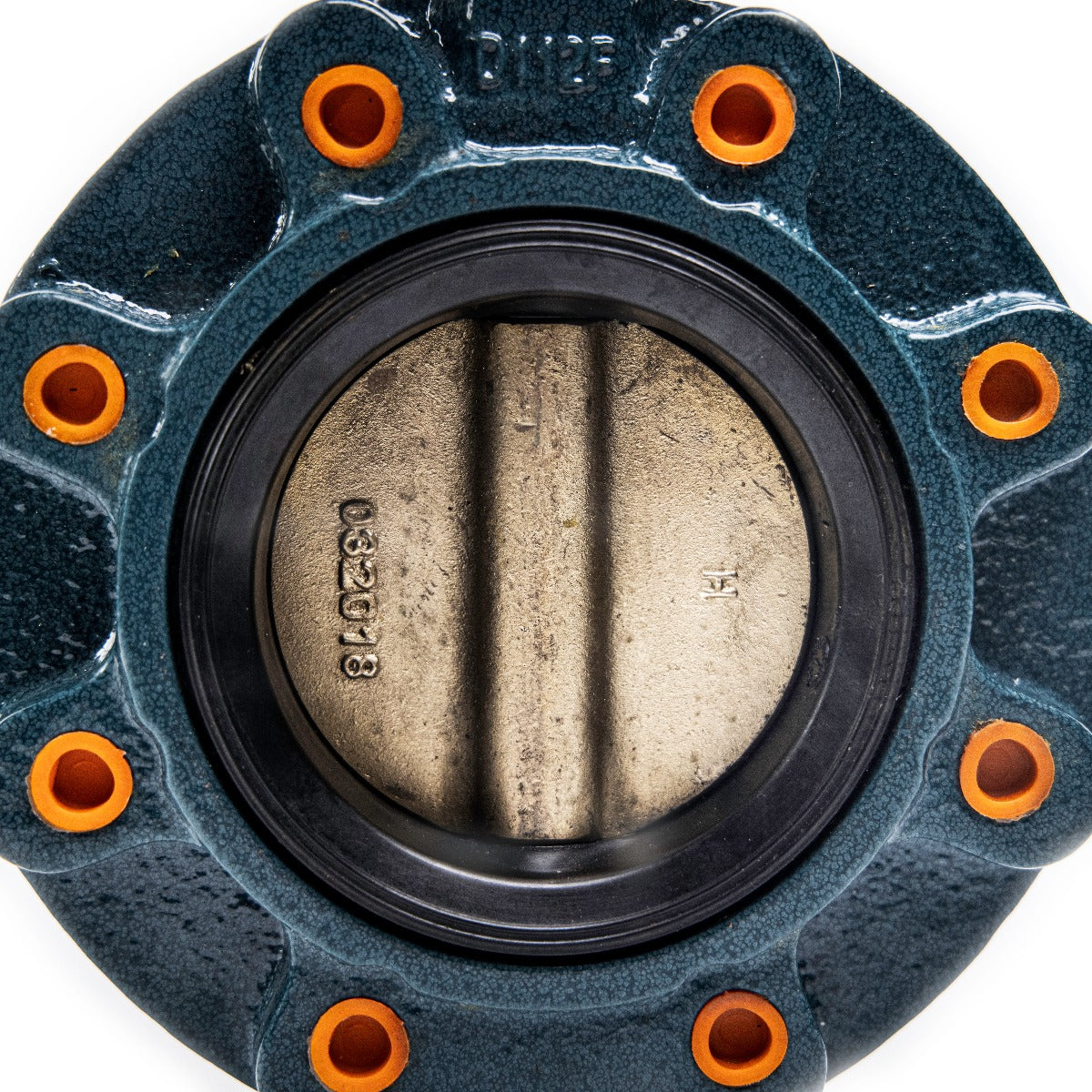

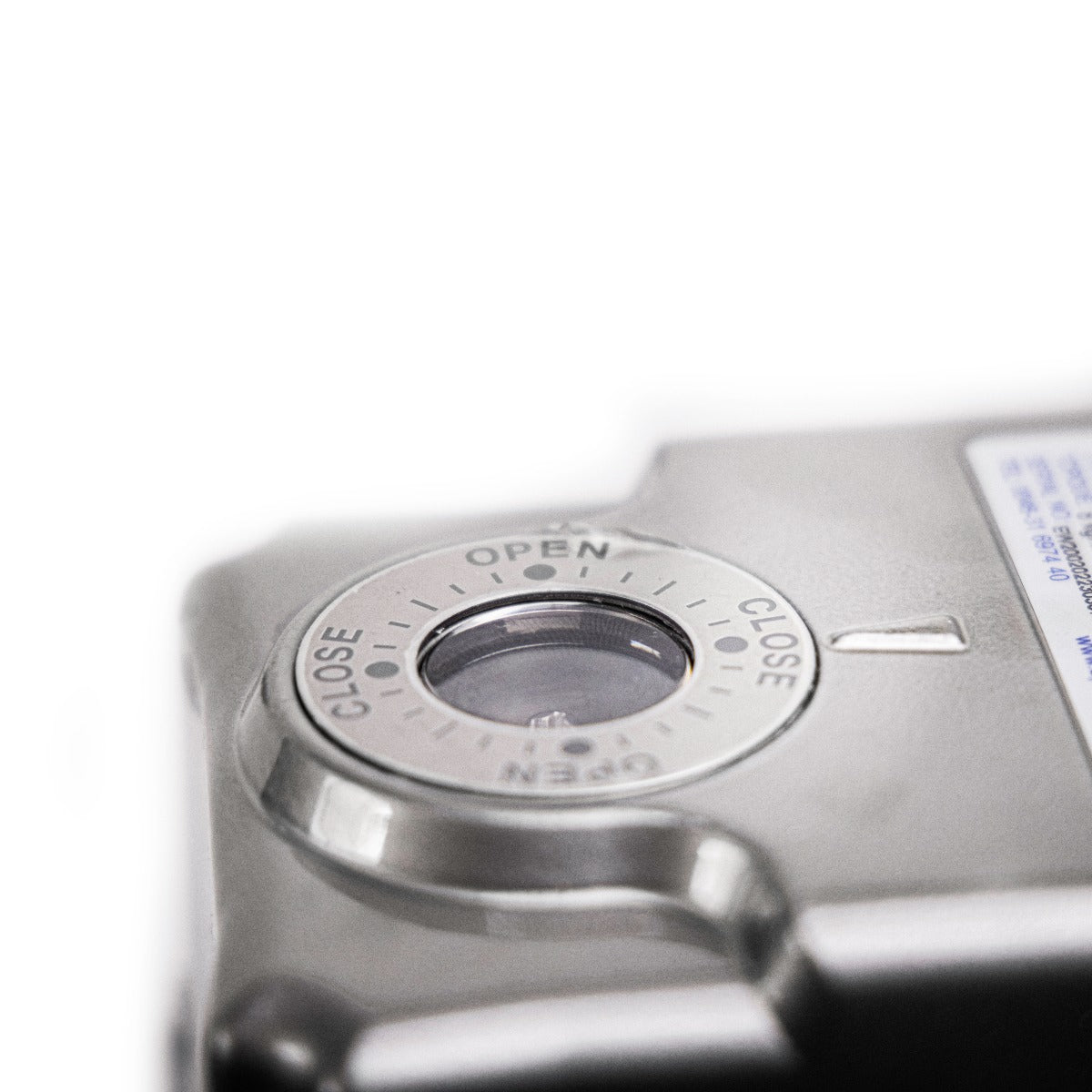

This butterfly valve has a lug type connection and can be used as an end of the line valve. Standard lining is EPDM rubber and the valve has an ISO 5211 flange for direct mounting of actuators. It has a stem bushing of PTFE between the body and shaft to ensure that the valve is easily operated over time. Face to face according to DIN EN 558-1 series 20 (K1). The valve is controlled by an electric actuator 230 VAC with 4-20 mA or 0-10 VDC.

Description

Body: Cast iron GG 25
Disc: Stainless steel AISI 316
Lining: EPDM
Connection: Lugged
Temp: -15°C - +110°C
