SKU: BPS 2313040E

Butterfly valve cast iron

DN : 40
BYGGLÄNGD : 33
PN | SPÄNNING: 16 | 230VAC
Price:
0 kr

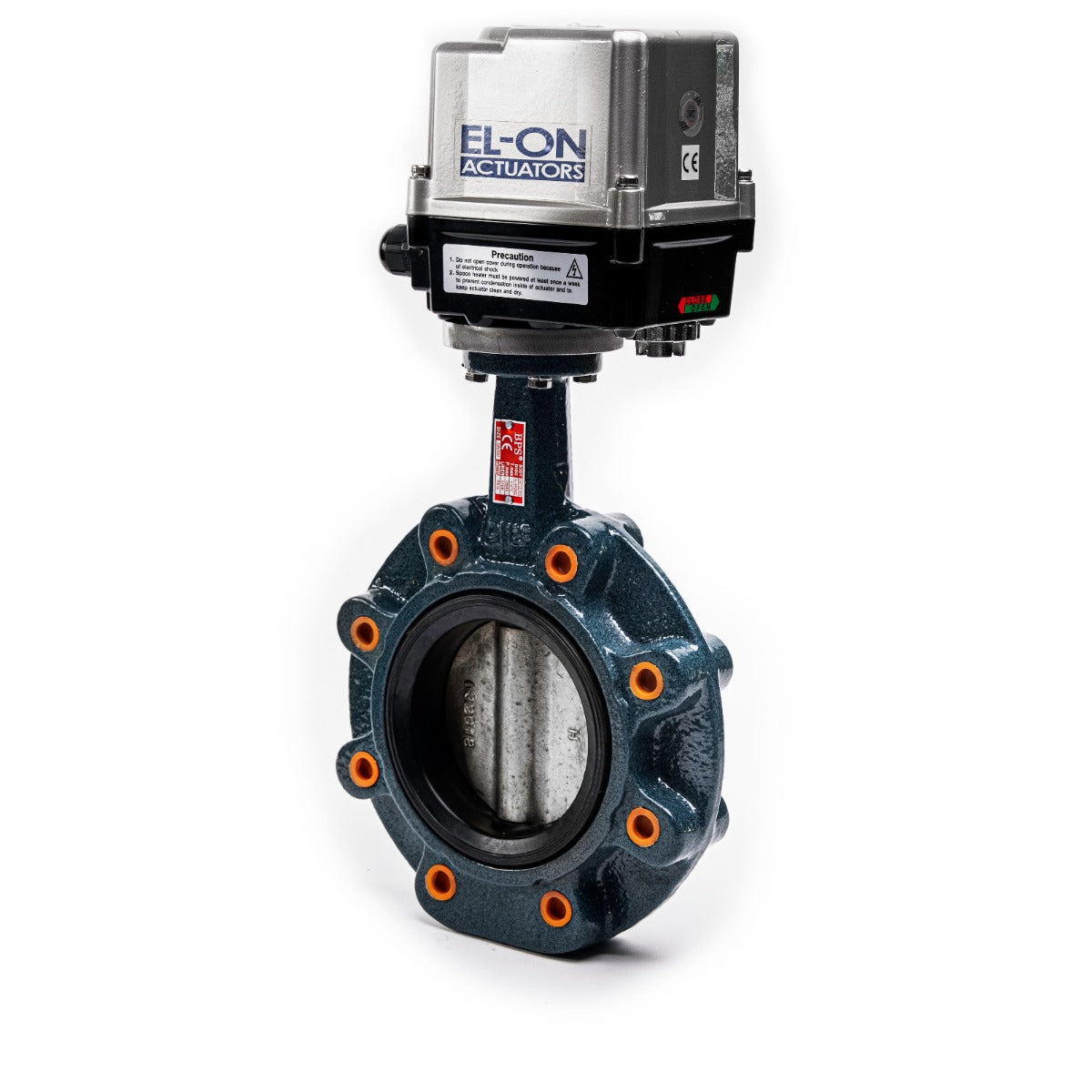

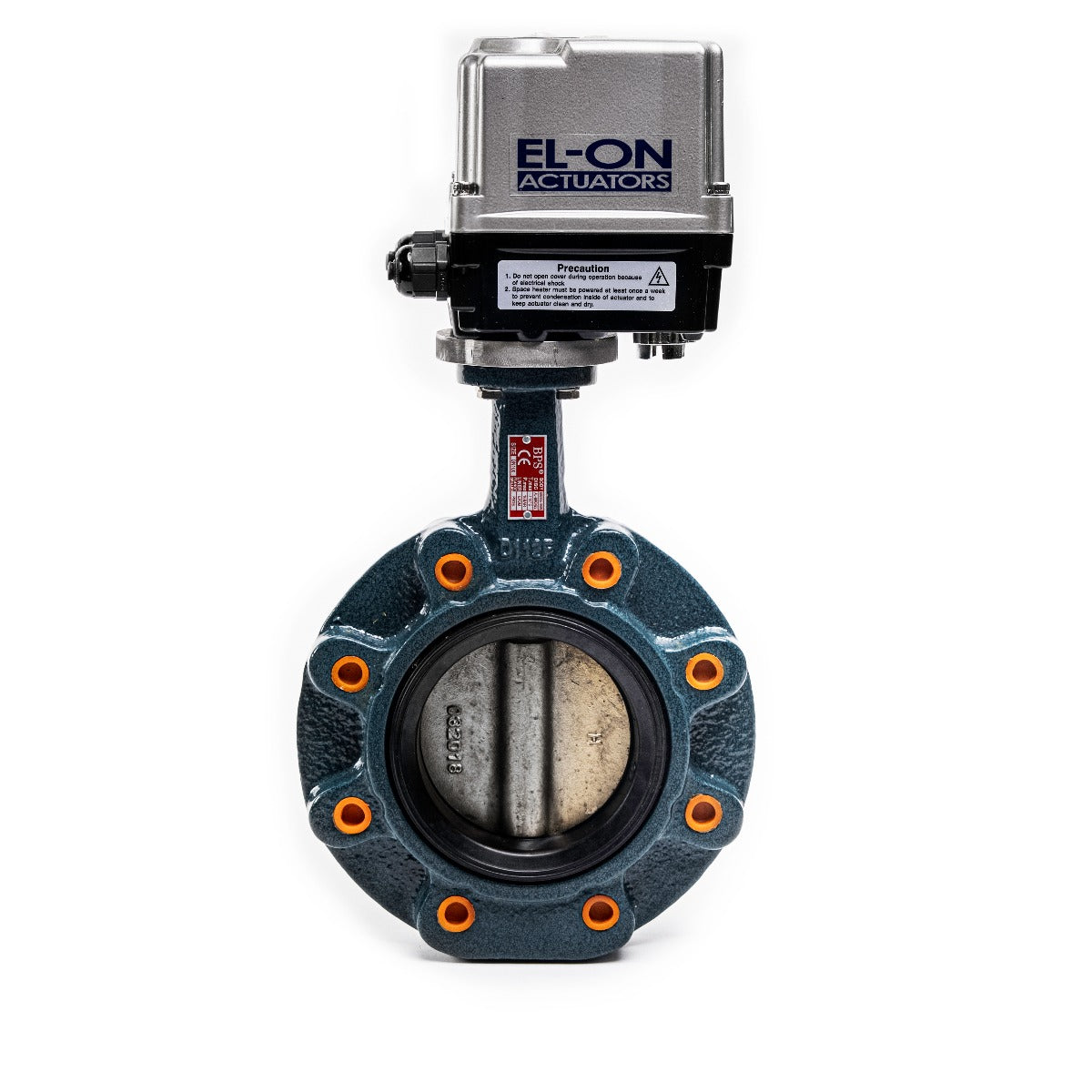

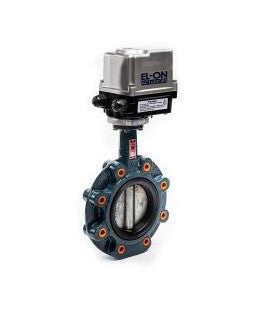

This butterfly valve has a lug type connection and can be used as an end of the line valve. Standard lining is EPDM rubber and the valve has an ISO 5211 flange for direct mounting of actuators. It has a stem bushing of PTFE between the body and shaft to ensure that the valve is easily operated over time. Face to face according to DIN EN 558-1 series 20 (K1). The electric acuator is available with 230VAC, 24VAC eller 24VDC.

Description

Body: Cast iron, GG 25

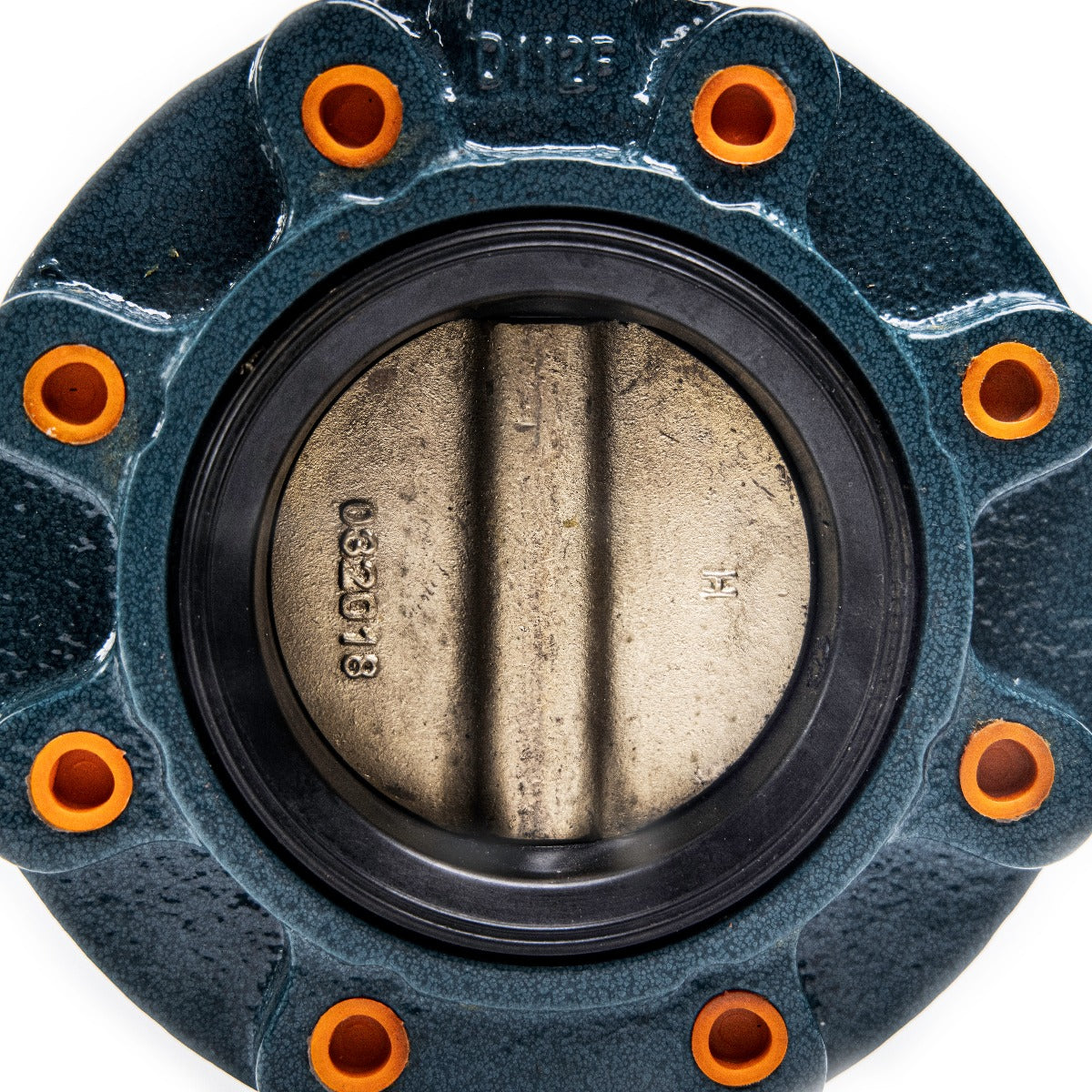

Disc: Stainless steel AISI 316
Lining: EPDM
Connection: Lugged
Temp: -15°C - +110°C

Data sheet

  • - Datablad SV-EN BPS2313 (PDF)
  • 3D BPS2313E 8005 (STP)
