BPS 2303

SKU: BPS 2303040

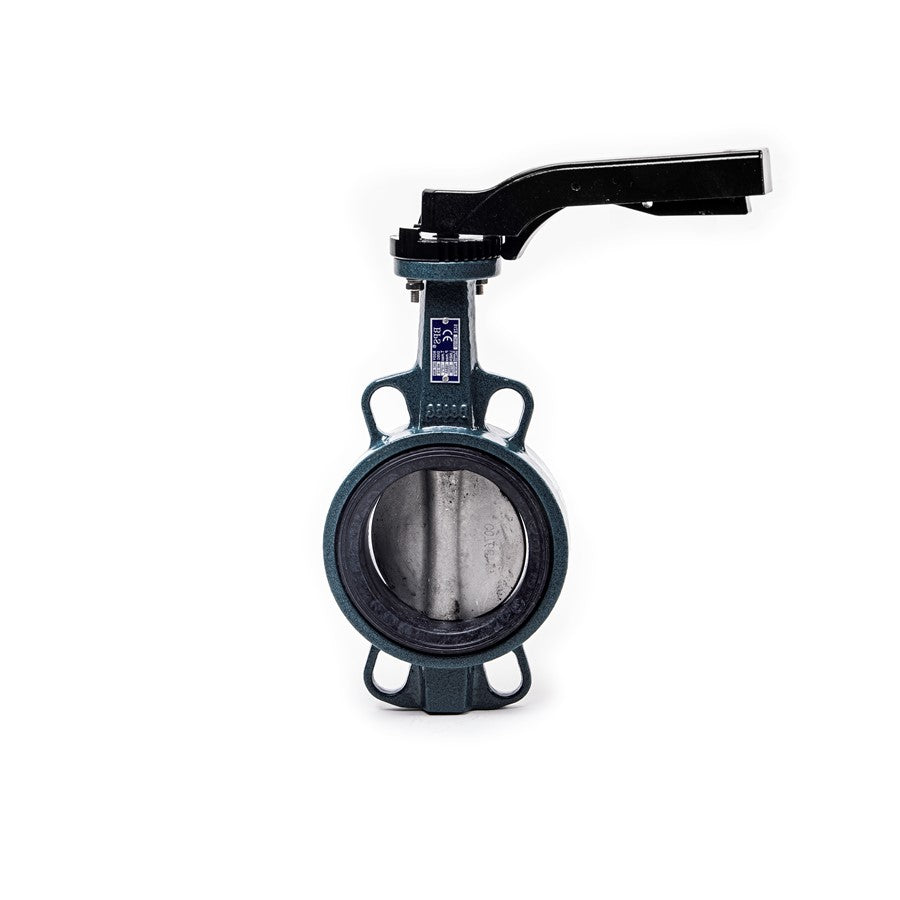

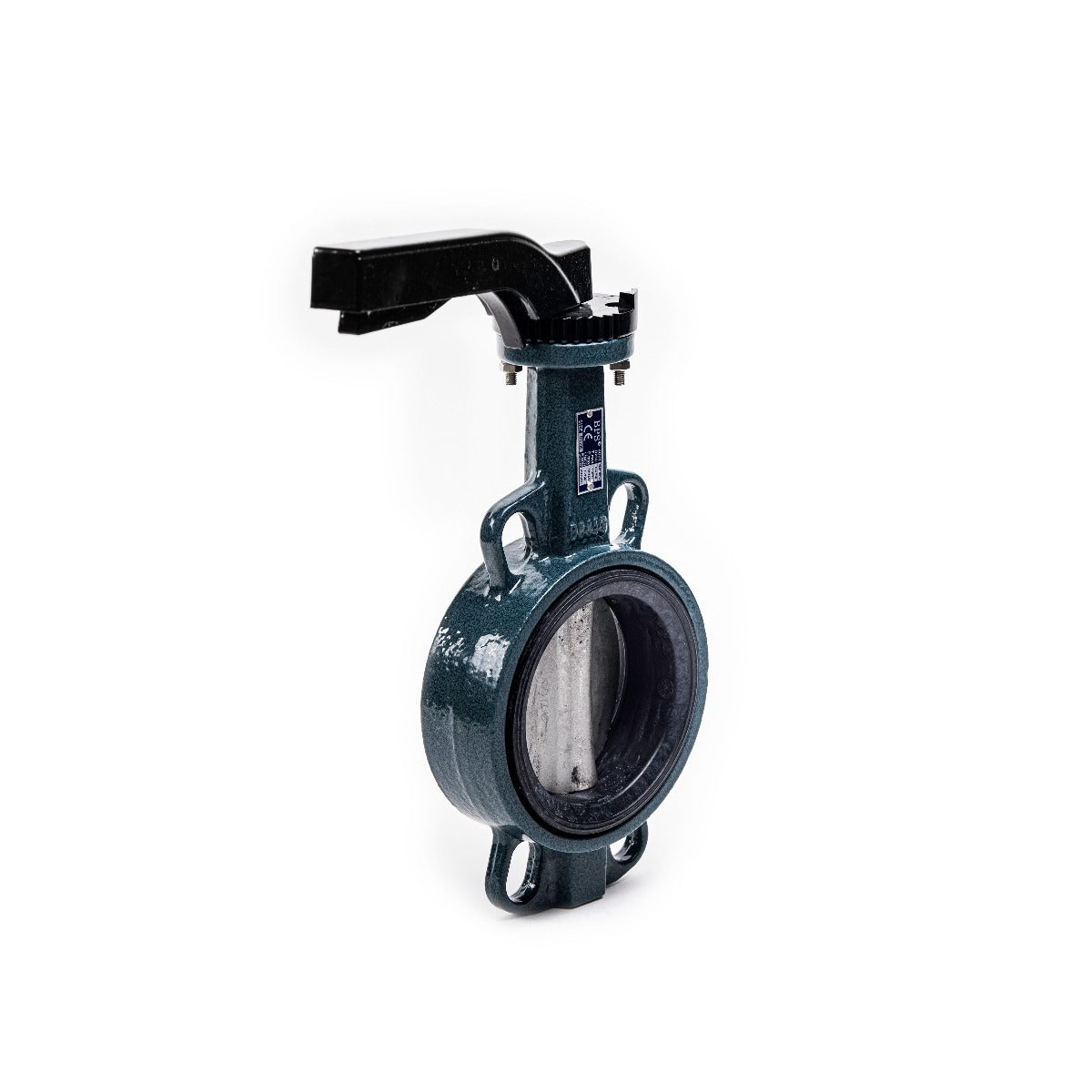

Butterfly valve cast iron

DN: 40
BYGGLÄNGD : 33
PN: 16
Price:
0 kr

This butterfly valve has a wafer type connection and is mounted between two flanges. Standard lining is EPDM rubber and the valve has an ISO 5211 flange for direct mounting of actuators. It has a stem bushing of PTFE between the body and shaft to ensure that the valve is easily operated over time. Face to face according to DIN EN 558-1 series 20 (K1).

Description

Body: Cast iron GG25
Disc: Stainless steel AISI316
Lining: EPDM
Connection: Wafer
Temp: -15°C - +110 °C

Data sheet

  • - Datablad SV-EN BPS2303 (PDF)
  • 3D BPS2303 handspak (STP)
  • 3D BPS2303 växel (STP)
