BPS 2302P
Roll over image to zoom in Click on image to zoom
BPS 2302P

BPS 2302P

SKU: BPS 23020408300

Butterfly valve ductile iron

DN DA Dubbelverkande SR Enkelverkande: 40 DA
BYGGLÄNGD : 33
PN: 10
Price:
0 kr

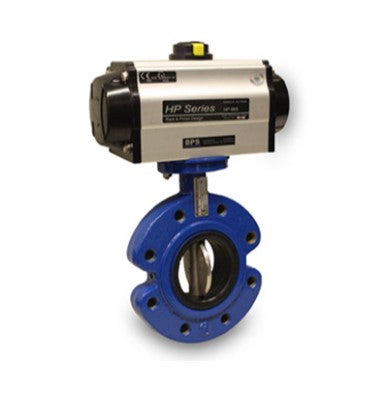

This butterfly valve has a lug type connection and can be used as an end of the line valve. The body is galvanized for extra protection against corrosion. EPDM lining with DVGW certificate for drinking water. It has an ISO 5211 flange for direct mounting of actuators. Between the body and the stem is a stem bushing of bronze to ensure that the valve is easily operated over time. Face to face according to DIN EN 558-1 series 20 (K1). The pneumatic actuator is available in double acting and single acting versions.

Description

Body: Ductile Iron GGG40
Disc: Stainless steel AISI316
Lining: EPDM (DVGW cert.)
Connection: Lugged
Temp: -30°C - +120°C



Data sheet

  • - Datablad SV-EN 8300DA (PDF)
