BPS 2300E
BPS 2300E
Roll over image to zoom in Click on image to zoom
BPS 2300EBPS 2300E

BPS 2300E

SKU: BPS 2300040E

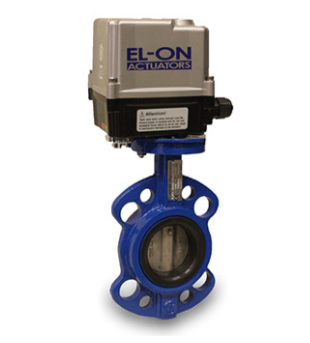

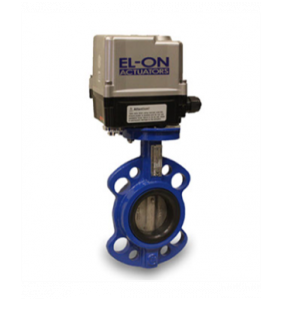

Butterfly valve ductile iron

DN: 40
BYGGLÄNGD: 33
PN | SPÄNNING: 10 | 230VAC
Price:
0 kr

This butterfly valve has a wafer type connection and is mounted between two flanges. The body is galvanized for extra protection against corrosion. EPDM lining with DVGW certificate for drinking water. It has an ISO 5211 flange for direct mounting of actuators. Between the body and the stem is a stem bushing of bronze to ensure that the valve is easily operated over time. Face to face according to DIN EN 558-1 series 20 (K1). The electric acuator is available with 230VAC, 24VAC eller 24VDC.

Description

Body Ductile iron GGG40
Disc: Stainless steel AISI316
Lining: EPDM
Connection: Wafer
Temp: -30°C - +120°C



Data sheet

  • - Datablad SV-EN BPS8005-8010 (PDF)
